Building-Integrated Photovoltaic (BIPV) Facades Manufactured in KSA
At Triad Aluminum Facades, we engineer, custom-design, and manufacture high-performance Building-Integrated Photovoltaic (BIPV) glass curtain wall systems tailored for sustainable commercial towers and institutional developments across Saudi Arabia. Produced directly inside our Saudi factory, our BIPV solar facades replace traditional exterior building glass and spandrel cladding with active solar power generators.
Looking for solar yield calculations, BIPV glass samples, or direct factory estimation?
Designed specifically to perform in harsh Middle Eastern climates, our renewable envelope systems help developers and architects achieve high Mostadam green building ratings and LEED Gold/Platinum certifications while reducing building operational costs.
Mostadam & LEED Certification Advantages
Integrating BIPV facade systems directly accelerates compliance with Saudi Arabia’s Vision 2030 sustainability mandates:
Mostadam Green Building System
Earns maximum points under the Energy & Atmosphere category for on-site renewable energy production and peak load reduction.
LEED v4 / v4.1 Ratings
Directly contributes to Renewable Energy Production, Minimum Energy Performance, and Optimized Energy Performance credits required for Gold and Platinum status.
Thermal Load Reduction
Photovoltaic cells absorb incoming solar radiation before it enters the interior, lowering HVAC cooling demand and overall $U$-factor requirements.
TECHNICAL SPECS
Technical Specifications & Testing Compliance
Our BIPV solar curtain wall systems are extruded from certified 6063-T6 structural aluminum alloys and tested in accordance with international photovoltaic and structural engineering standards.
Photovoltaic Standards
Certified compliant with IEC 61215 (Module Design & Type Approval) and IEC 61730 (Module Safety Qualification).
Thermal Resilience
Engineered with heat-resistant bypass diodes and low thermal coefficient cell tech to maintain high power conversion in ambient temperatures exceeding 50°C.
Structural Wind Load Capacity (ASTM E330)
Custom structural mullions engineered to handle heavy wind pressures up to 3.5 kPa on elevated commercial towers.
Core BIPV Application Areas
Solar Vision Glazing & Semi-Transparent Windows
Solar glass windows combine natural daylight with renewable energy generation, using customizable transparency and integrated PV cells to reduce glare. Low-E coatings and argon-filled double or triple glazing improve thermal efficiency and indoor comfort.

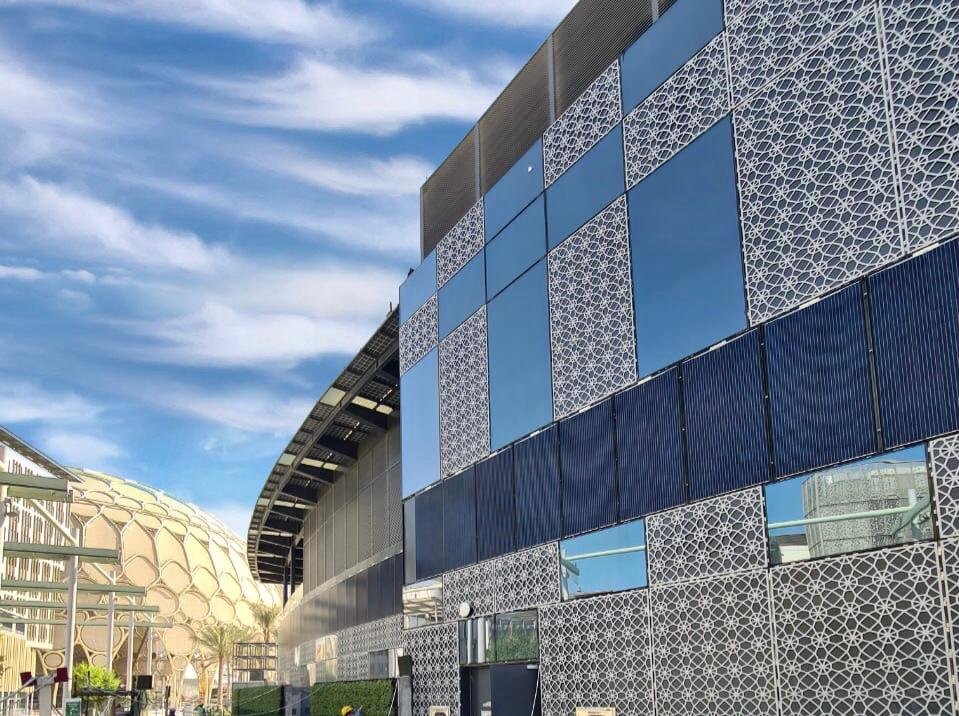

Opaque Solar Spandrel & Cladding Panels
High-density BIPV solar panels replace traditional aluminum, stone, and spandrel cladding while generating renewable energy. Custom finishes, high-efficiency solar cells, and concealed wiring provide high performance with a seamless architectural look.
Solar Canopy Roofs & Overhead Skylights
Solar glass structures provide natural shading and renewable energy generation for atriums, entrance canopies, and walkways. Laminated safety glass offers overhead protection while capturing sunlight to generate clean power.
Direct Comparison: Standard
Glass Curtain Wall vs. BIPV Solar Facade
Upgrading from conventional glazing to energy-generating BIPV glass transforms a static facade into a long-term yield-producing asset.
01Traditional Double-Glazed Curtain Wall
Traditional double-glazed curtain walls provide weather protection, daylighting, and thermal insulation, but rely on grid electricity for building energy needs and offer limited renewable energy benefits.
02Triad BIPV Solar Glass Curtain Wall
Triad BIPV solar glass curtain walls combine high-performance glazing with on-site solar power generation, helping reduce energy costs and support LEED and Mostadam green building goals.
Partner Directly with a KSA BIPV Facade Manufacturer
Eliminate long overseas supply delays, middleman markups, and complex import logistics by working directly with our KSA manufacturing plant.
