Certified Fire-Rated Aluminum & Glass Systems (EI30 / EI60 / EI120)
At Triad Aluminum Facades, we engineer, assemble, and deliver certified fire-rated glass and aluminum framework systems designed to provide critical life-safety protection for commercial, institutional, and residential buildings across Saudi Arabia. Manufactured in our KSA facility, our fire-resistant curtain walls, doors, and interior partitions prevent the spread of fire, smoke, and radiant heat, ensuring safe evacuation routes and structural containment during emergency events.
Need fire test submittals, Civil Defense certification, or direct factory pricing?
Fully compliant with Saudi Building Code requirements (SBC 201 / SBC 801) and certified by Saudi Civil Defense, our systems blend seamlessly with surrounding non-fire-rated facades while meeting strict international fire test standards.
EI Protection Levels Manufactured in KSA
Our EI-rated fire systems are tested to maintain structural integrity and complete thermal insulation for specified durations:
EI30 System (30-Minute Fire & Insulation Resistance)

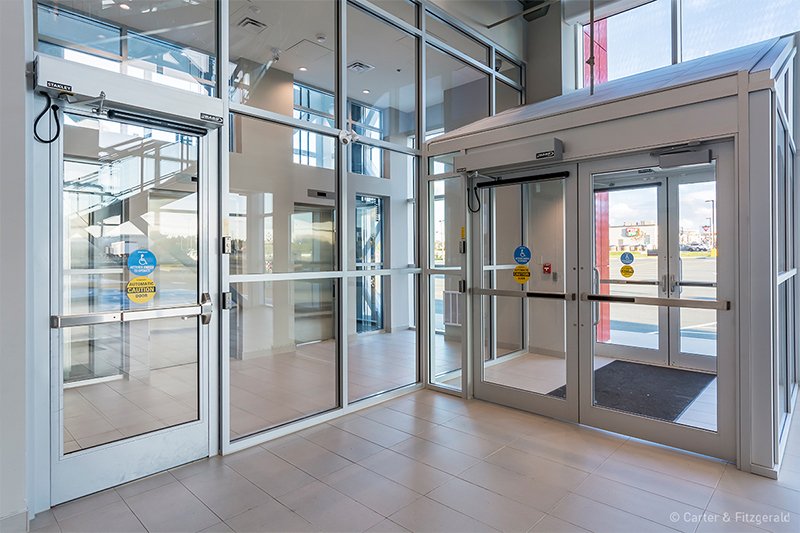

Ideal for office partitions, retail storefronts, and exit corridors, these fire-rated systems feature a 70mm thermally isolated frame with steel reinforcement and 15–18mm laminated fire glass with intumescent gel for enhanced fire protection.
EI60 System (60-Minute Fire & Insulation Resistance)
Designed for commercial lobbies, mechanical rooms, and fire refuge zones, these heavy-duty fire-rated systems feature an 80mm ceramic-insulated frame and 23–27mm multi-layer fire-resistant glass with dual intumescent interlayers.
EI120 System (120-Minute Fire & Insulation Resistance)
Engineered for critical fire-safety applications, including high-rise refuge floors, elevator shafts, and transformer rooms, these systems feature steel-reinforced ceramic-insulated frames and 40mm+ multi-layer fire-resistant glass with expanding interlayers.
TECHNICAL SPECS
Technical Specifications & Testing Standards
Our fire-rated assemblies are tested according to rigorous European and North American fire safety protocols:
Fire Testing Standards
Compliant with EN 1363-1, EN 1364-1 (curtain walls/walls), EN 1634-1 (doors), and UL 10C.
Impact & Safety Rating
Tested to EN 12600 Class 1B1 for impact resistance, providing high everyday safety against human impact.
Saudi Civil Defense Approval
Supported by third-party laboratory test certificates (Intertek / Warringtonfire / Efectis) recognized by KSA authorities.
Core Engineering Features & Technology
Intumescent Interlayer Technology
Under high temperatures ($>120^\circ\text{C}$), the transparent interlayers swell to form a dense, opaque foam shield that blocks 100% of thermal radiation.
Steel-Reinforced Ceramic Cores
Exterior aluminum extrusion profiles house internal steel profiles and thermal ceramic cooling blocks, preventing frame buckling under intense heat loads up to $1,000^\circ\text{C}$.
Intumescent Edge Seals
Heat-activated perimeter gaskets expand rapidly during a fire, sealing all gaps between frame and glass to stop toxic smoke penetration.
Architectural Uniformity
Designed with slim sightlines matching standard non-fire-rated curtain wall and fenestration profiles for visual consistency throughout the building.
Understanding Fire Resistance Classifications: E vs. EW vs. EI
Fire-rated glazing and framing are classified based on performance under extreme furnace testing conditions.
01Class E – Integrity
Class E fire-rated systems help block flames, smoke, and hot gases but do not provide significant radiant heat protection. They are suitable for smoke screens and non-combustible partitions.
02Class EW – Integrity & Radiation
Class EW systems provide flame and smoke protection while limiting radiant heat transfer, making them suitable for boundary walls and external fire corridors.
03Class EI – Integrity & Insulation

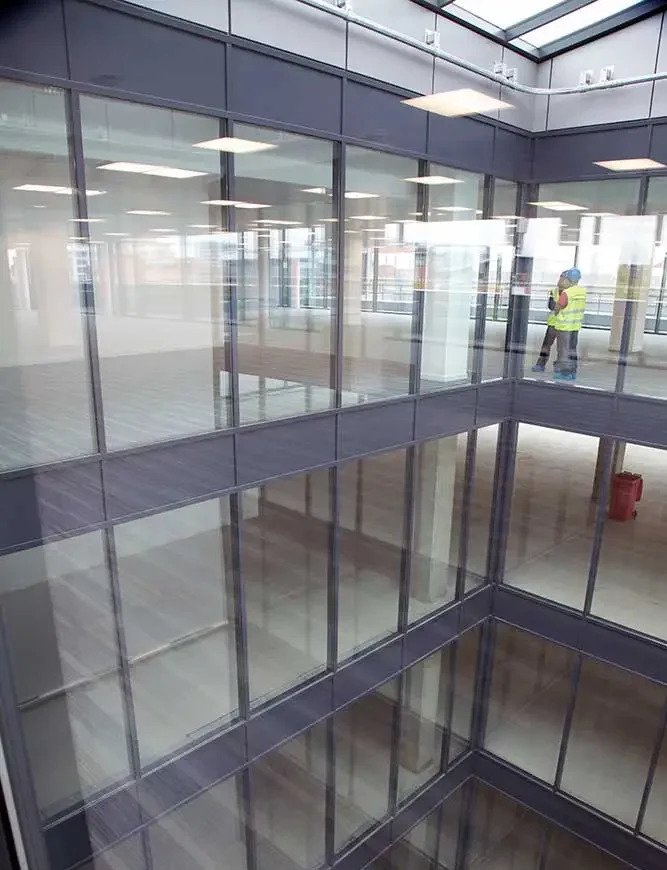

Class EI systems provide complete fire, smoke, and heat protection, making them ideal for stairwells, refuge floors, elevator lobbies, and atrium barriers.
Direct KSA Factory Supply & Engineering Support
Eliminate compliance delays and high import freight costs by ordering directly from our Saudi manufacturing facility.
